Front Lower Arm: Replacement

WARNING: This page is about a different car, the 2007 Hyundai Entourage. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tools (09214-32000 & 09216-211000), remove the bushing from the lower arm.

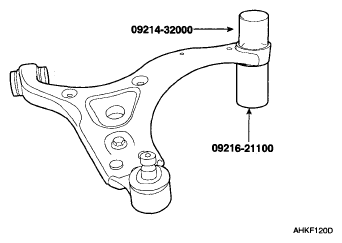

Fig 1: Identifying Special Tools
Courtesy of HYUNDAI MOTOR CO.
Apply soap solution to the following parts.
- Outer surface of the bushing.
- Inner surface of the lower bushing mounting part.
Using the special tools (09214-32000 & 09216-21100), install the busing on the lower arm.

Fig 2: Identifying Special Tools
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Insert bushing in the direction shown in the illustration.

Separation force is over 100 Nm (l000 Kgf, 2204 lbf)

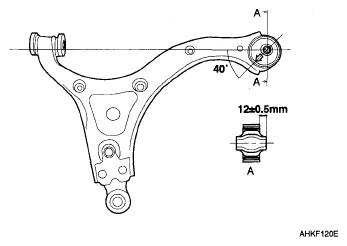

Fig 3: Identifying Bushing Dimension
Courtesy of HYUNDAI MOTOR CO.
