Seat Back Frame Replacement
- Remove the recliner cover, knob and height knob (See RECLINER COVER, KNOB AND HEIGHT KNOB REPLACEMENT
).

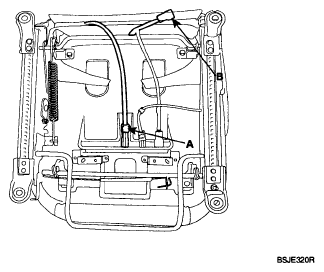

- Disconnect the airbag connector(A), heater connector(B).
Courtesy of HYUNDAI MOTOR CO.

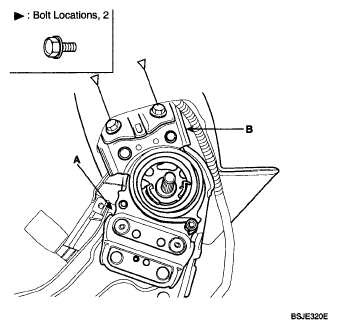

- Disconnect the seat back frame(B) from seat track assembly(A).
Courtesy of HYUNDAI MOTOR CO.
- Remove the seat back cover (See SEAT BACK COVER REPLACEMENT
).
- Remove the head rest and head rest guide (See ARM REST REPLACEMENT
).
- Remove the seat back cover and sponge, from frame (See SEAT BACK COVER REPLACEMENT
).
- After loosening seat back frame mounting bolts, remove the seat back frame(A).
NOTE:
- Remove the side air bag for replacing side air bag installation seat.
- Before service, be fully aware of precaution and service procedure relevant to air bag.
Courtesy of HYUNDAI MOTOR CO.
- Installation is the reverse of removal.
