Seat Assembly Replacement

  1. Remove the seat assembly mounting cover.
  2. After loosening the seat assembly mounting bolt and nut, remove the seat assembly (A).

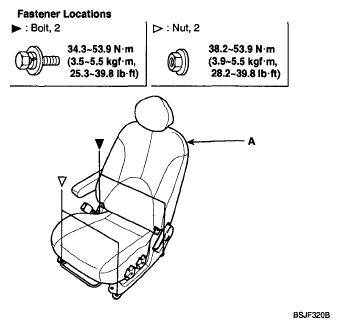

    Fig 1: Seat Assembly Mounting Bolt & Nut With Torque Specifications
    G04802797Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the connector (B), and remove the seat assembly.

    DRIVER'S

    • Disconnect the airbag connector (A), STP connector (B), Seat belt buckle connector (C) and then remove the seat assembly.

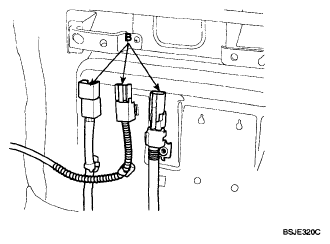

      • Fig 2: Identifying Seat Assembly Connector
      G04802798Courtesy of HYUNDAI MOTOR CO.

      PASSENGER'S

    • Disconnect the airbag connector, OCS connector, Seat belt buckle connector.
  4. Installation is the reverse of removal.
    CAUTION:
    • Set the into the most rearward position. Check then each slide is locked, and then Tighten the front mounting bolt temporarily.
    • Set the seat into most forward position. Check that each slide is locked, and then Tighten the rear mounting bolt completely.
    • Set the seat into the most rearward position. Check the front mounting bolt completely.
    • Check that the seat operates to and fro smoothy and the locking portion locks properly.
