Signal Waveform And Data

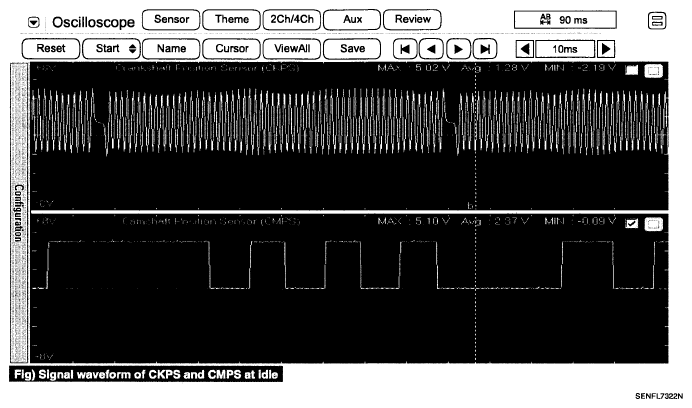

Fig 1: Signal Waveform Of CKPS And CMPS At Idle

G05329954

Courtesy of HYUNDAI MOTOR CO.
