Signal Waveform And Data

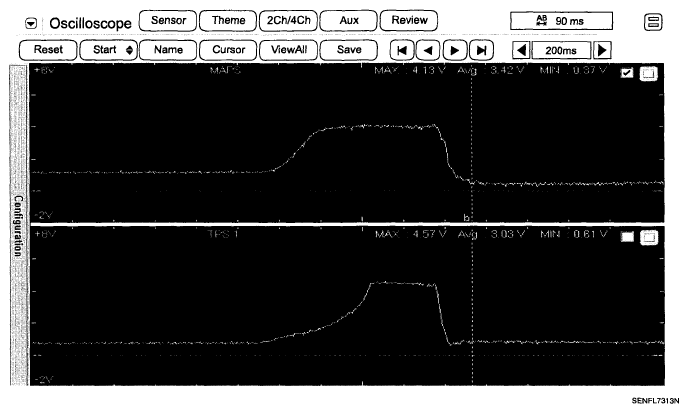

Fig 1: Signals Waveform Of MAPS And TPS Increases And Decrease Simultaneously
G05329857Courtesy of HYUNDAI MOTOR CO.

Comparing MAPS and TPS, The signals of MAPS and TPS increasess and decrease simultaneously.
