Schematic Diagram

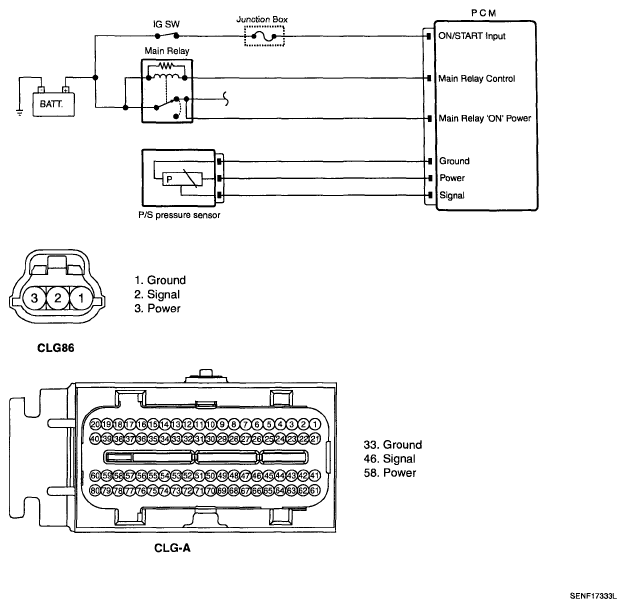

Fig 1: Power Steering Pressure Sensor/Switch Circuit Low Input - Schematic Diagram

G05330013

Courtesy of HYUNDAI MOTOR CO.
