Home >> Hyundai >> 2007 >> Veracruz GLS, AWD >> Repair and Diagnosis >> Brakes >> Traction Control >> ESC (Electronic Stability Control) System >> Esp/ESC System >> DTC C1647 Sensor Can Hardware Error >> Schematic Diagram

Schematic Diagram

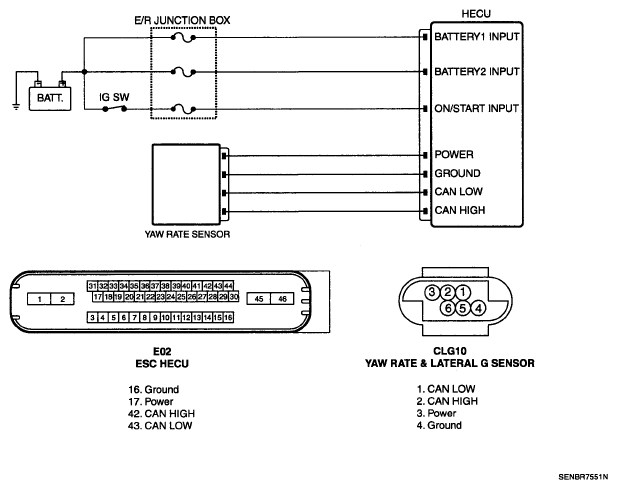

Fig 1: CAN Sensor - Schematic Diagram

G05331494

Courtesy of HYUNDAI MOTOR CO.
