Schematic Diagram

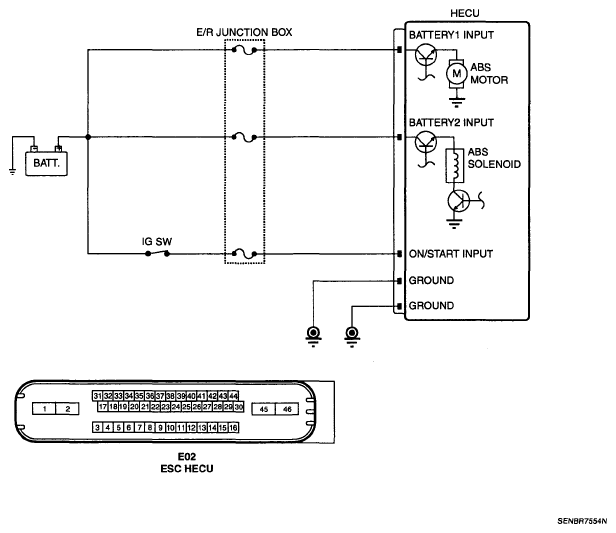

Fig 1: CAN Hardware - Schematic Diagram

G05331506

Courtesy of HYUNDAI MOTOR CO.
