Schematic Diagram

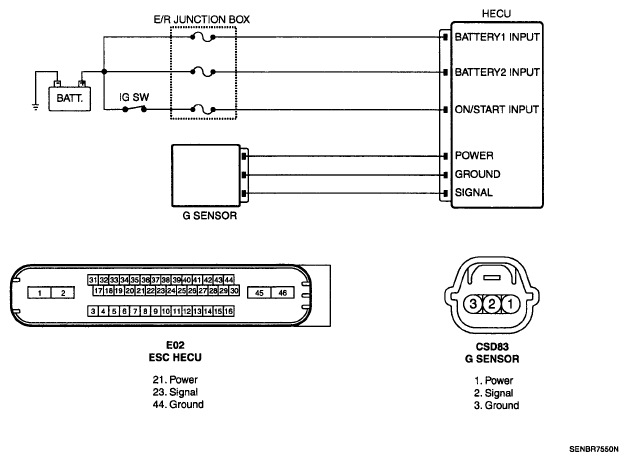

Fig 1: Longitudinal G Sensor - Schematic Diagram

G05331486

Courtesy of HYUNDAI MOTOR CO.
