Signal Circuit Inspection

Measure resistance between each terminal of the sensor harness connector and TCM(PCM) harness connector as below.

Specification :

2.7 GSL

TRANSAXLE RANGE SWITCH SPECIFICATION

Pin No of "TRANSAXLE RANGE SWITCH"	C08 No1	C08 No3	C08 No4	C08 No7
Pin No of "TCM(PCM)" harness	C24-3 No17	C24-3 No5	C24-3 No6	C24-3 No16
Specification	0Ω	0Ω	0Ω	0Ω

2.0 GSL

TRANSAXLE RANGE SWITCH SPECIFICATION

Pin No of "TRANSAXLE RANGE SWITCH"	C108 No1	C108 No3	C108 No4	C108 No7
Pin No of "TCM(PCM)" harness	C130-2 No29	C130-2 No22	C130-2 No6	C130-2 No14
Specification	0Ω	0Ω	0Ω	0Ω

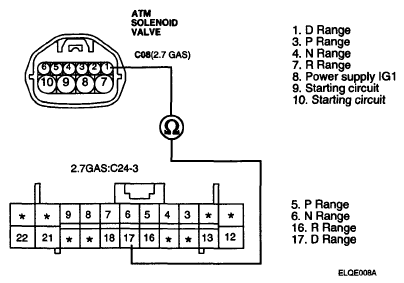

Fig 1: Measuring Resistance Between Terminal Of Sensor Harness Connector And TCM (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

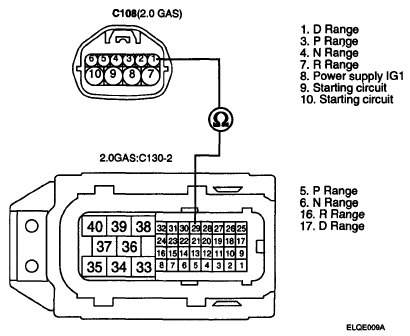

Fig 2: Measuring Resistance Between Terminal Of Sensor Harness Connector And TCM (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

Is resistance within specifications?
YES : --> Go to "COMPONENT INSPECTION " procedure.

NO : --> Check for Open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
