Windshield Wiper Motor Connector End View

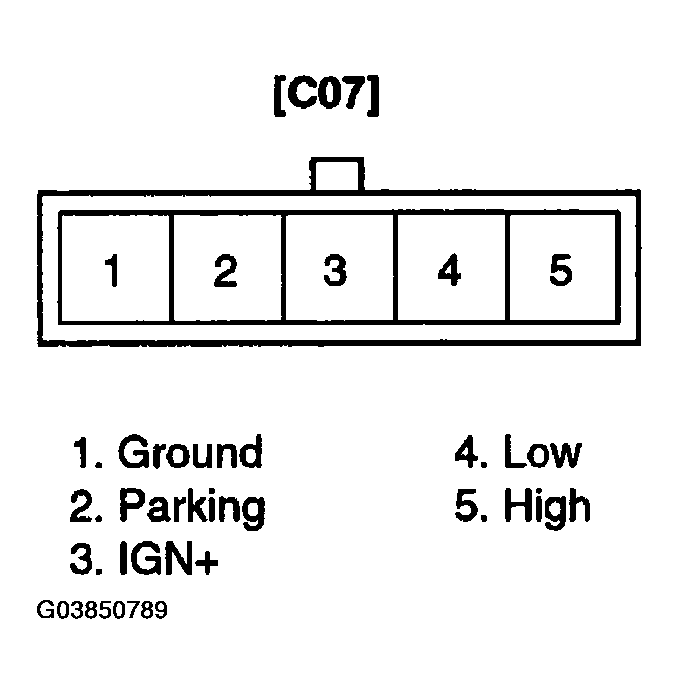

Fig 1: Windshield Wiper Motor Connector End View

G03850789

Courtesy of HYUNDAI MOTOR AMERICA
