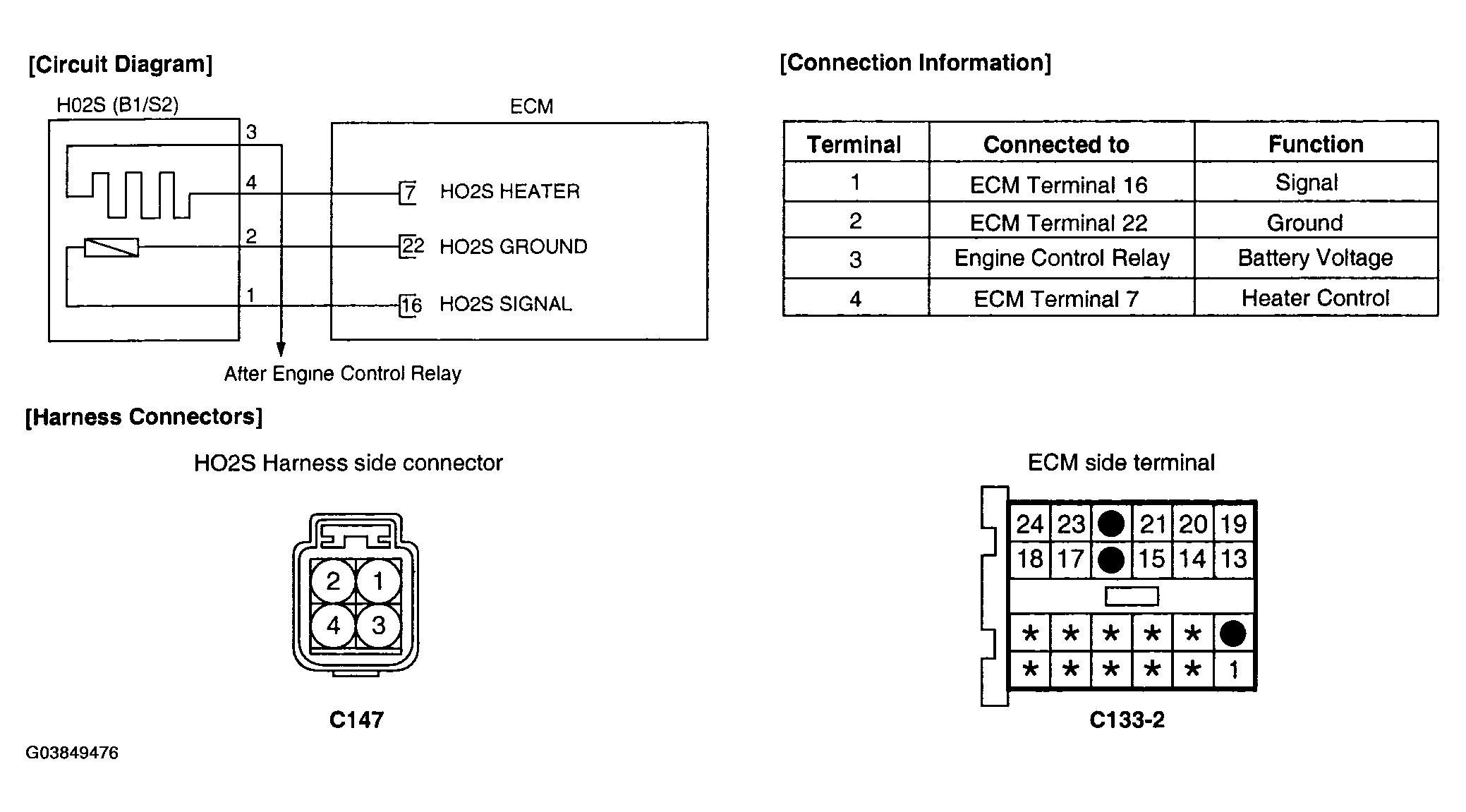

Home >> Hyundai >> 2007 >> Tiburon SE >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G6BA-GSL 2.7L) >> DTC Troubleshooting Procedures >> DTC P0136 Ho2S Circuit (Bank 1/Sensor 2) >> Schematic Diagram
