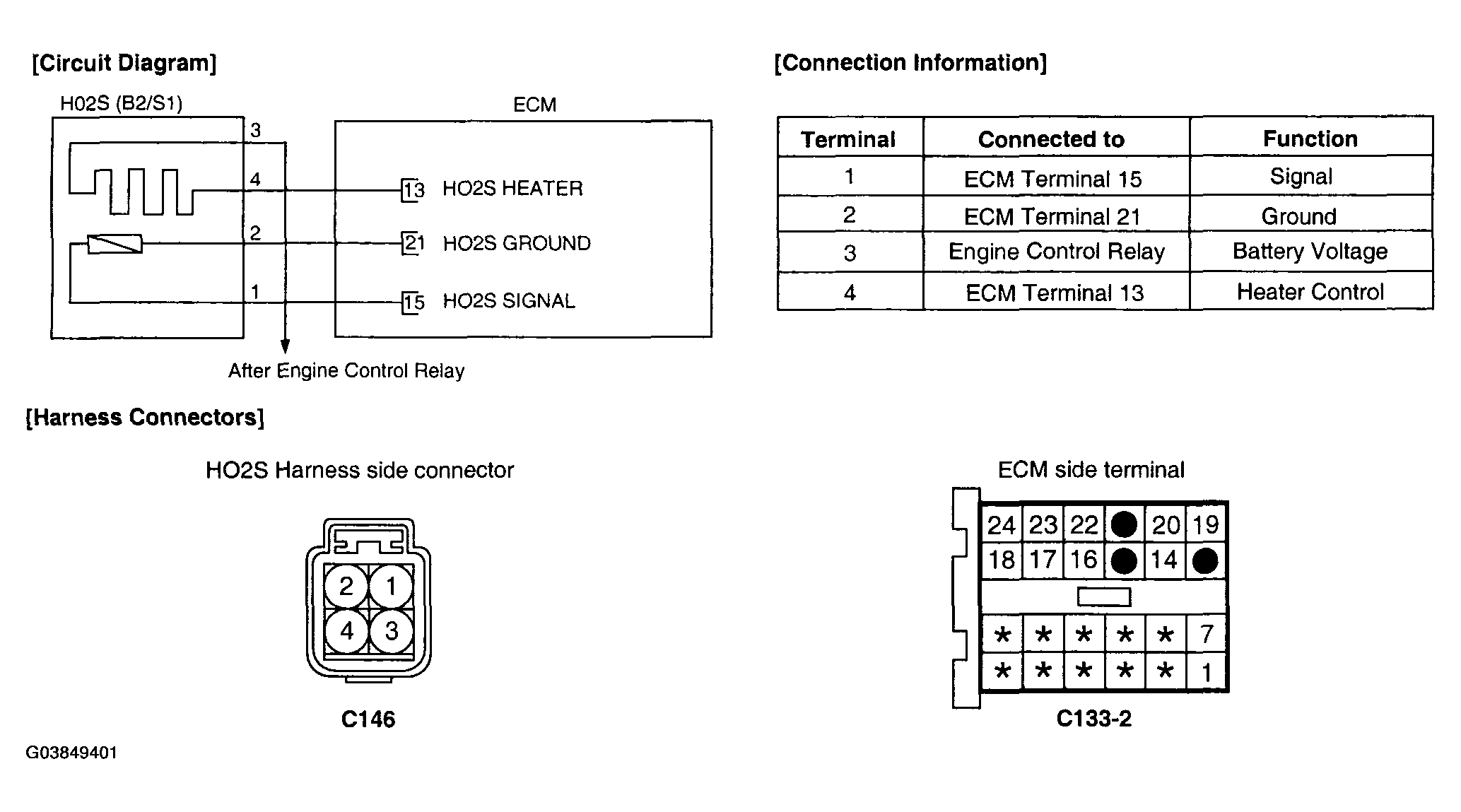

Home >> Hyundai >> 2007 >> Tiburon SE >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G6BA-GSL 2.7L) >> DTC Troubleshooting Procedures >> DTC P0050 Ho2S Heater Control Circuit (Bank 2/Sensor 1) >> Schematic Diagram
