Home >> Hyundai >> 2007 >> Tiburon GS, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G4GC-GSL 2.0L) >> DTC Troubleshooting Procedures >> DTC P0325 Knock Sensor 1 Circuit >> Schematic Diagram

Schematic Diagram

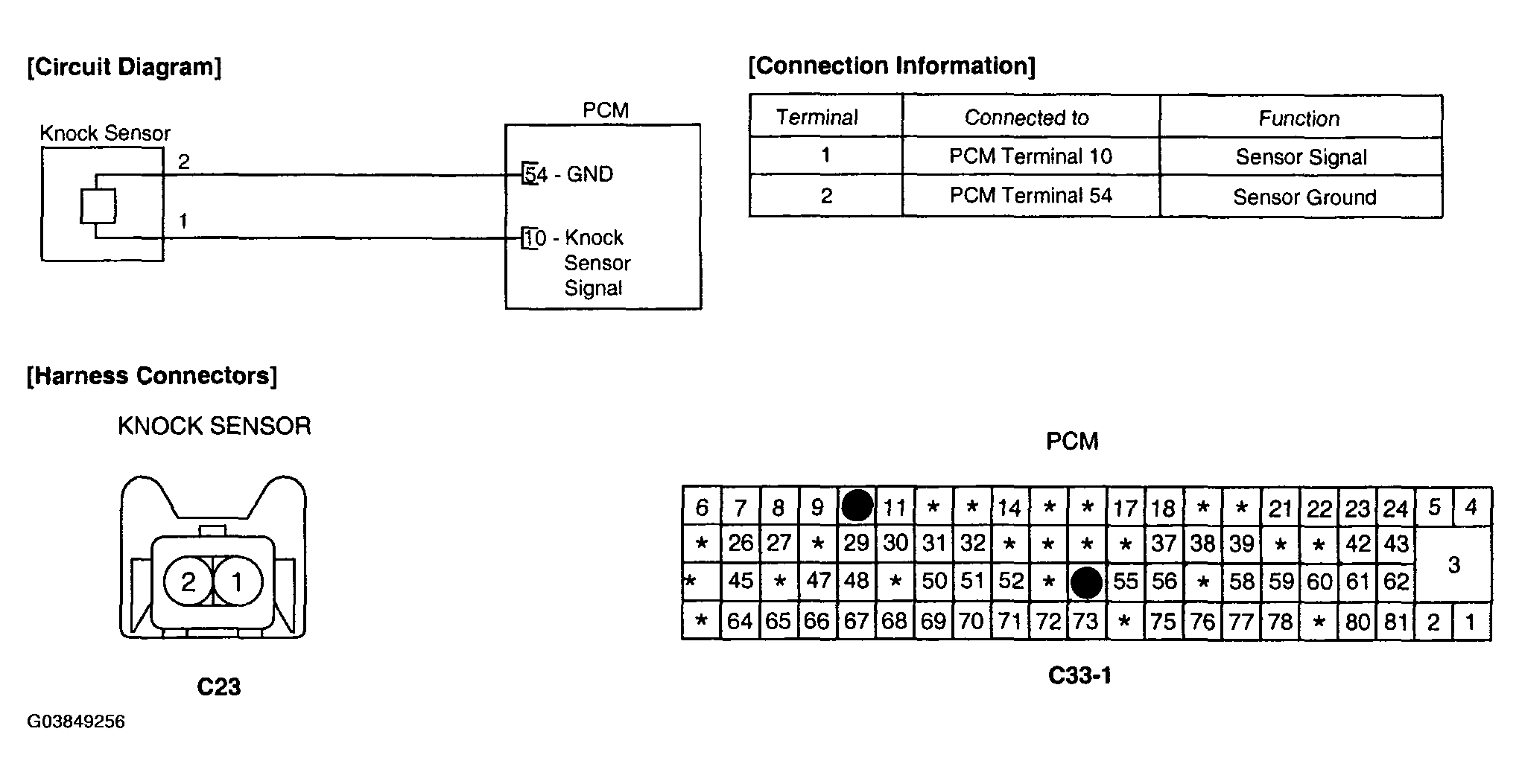

Fig 1: Schematic Diagram - Knock Sensor 1 Circuit

G03849256

Courtesy of HYUNDAI MOTOR CO.
