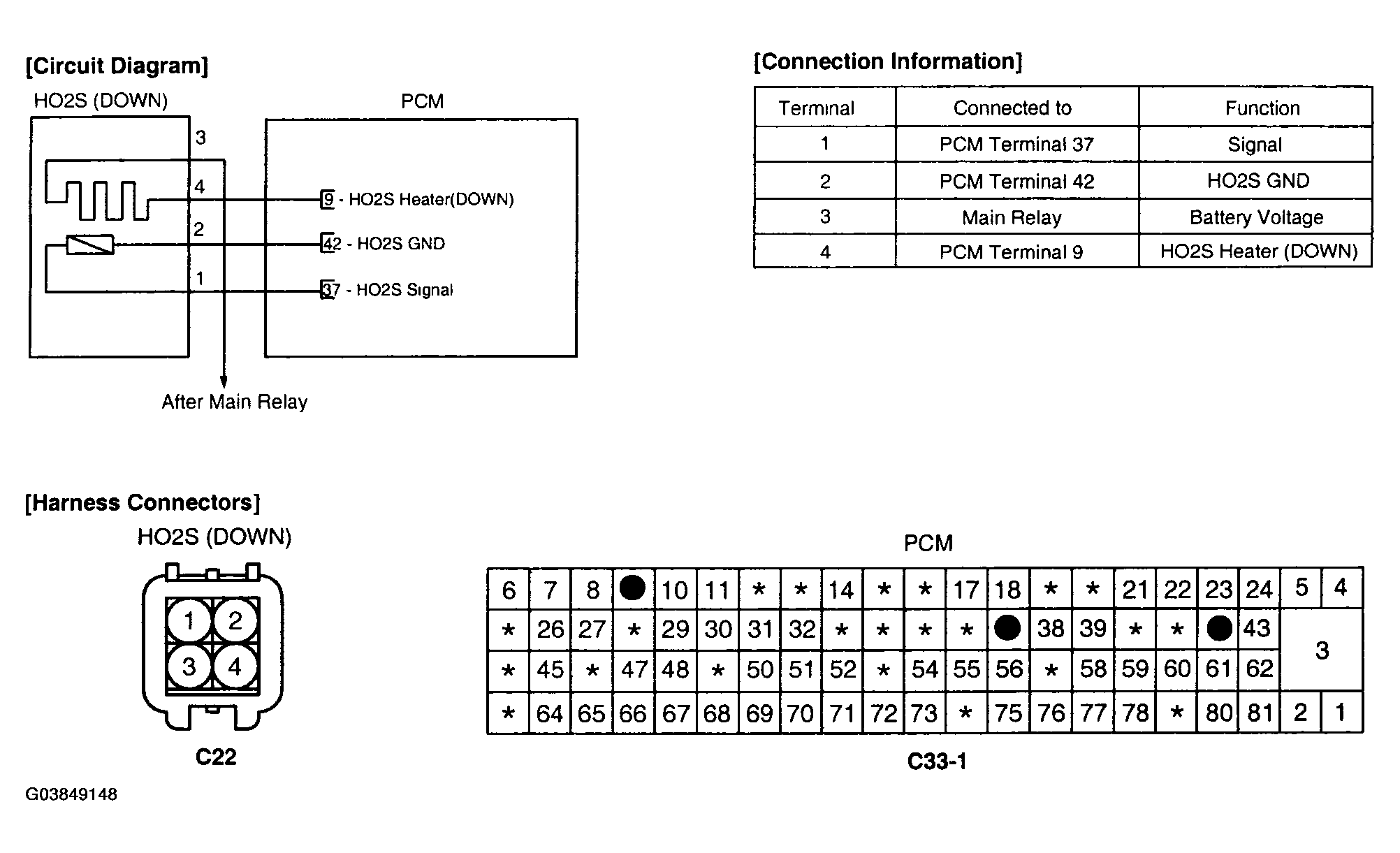

Home >> Hyundai >> 2007 >> Tiburon GS, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G4GC-GSL 2.0L) >> DTC Troubleshooting Procedures >> DTC P0036 Ho2S Heater Control Circuit (Bank 1/Sensor 2) >> Schematic Diagram
