Starting System: Starter: Components

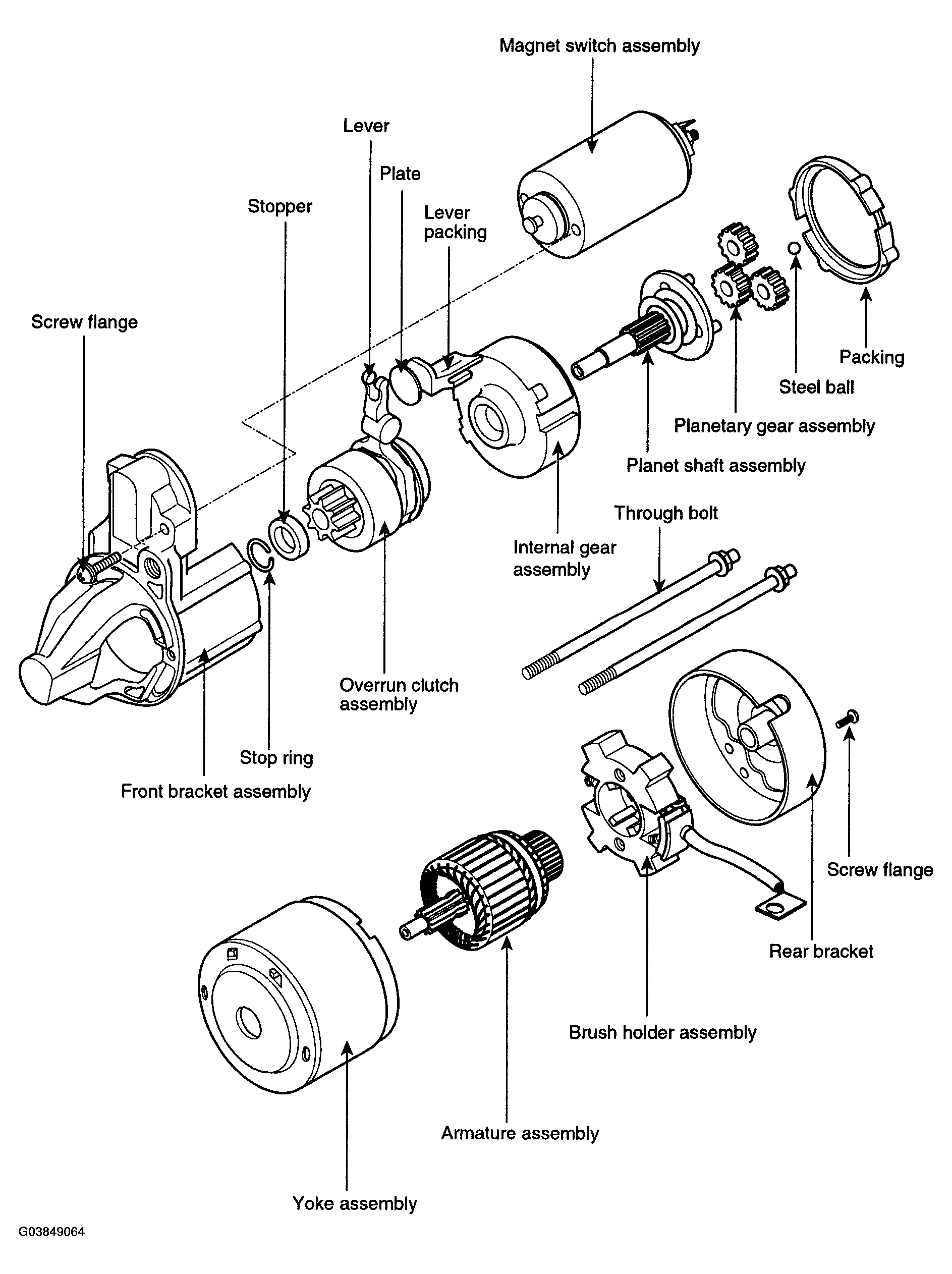

Fig 1: Exploded View Of Starter

G03849064

Courtesy of HYUNDAI MOTOR CO.
