Monitor SCANTOOL Data

  1. Connect scantool to DLC. (Data Link Connector)
  2. Warm up the engine to normal operating temperature.
  3. Monitor "APS1 & APS2" parameters on the scantool.
    OUTPUT VOLTAGE CHART

    Pedal Position Output Voltage (V) [Vref = 5.0V]
    APS1 APS2
    C.T 0.7 ~ 0.8V 0.275 ~ 0.475V
    W.O.T 3.8 ~ 4.4V 1.75 ~ 2.35V

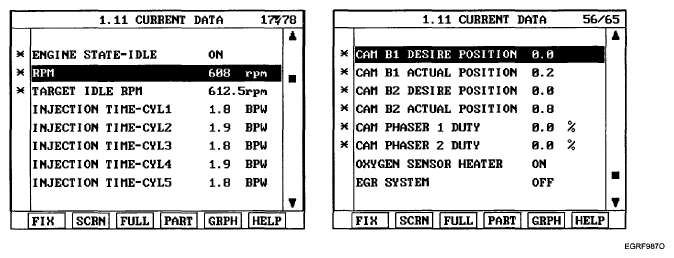

    Fig 1: Diagnosis Function Screen Display - RPM
    G04891537Courtesy of HYUNDAI MOTOR CO.
  4. Are those "APS1 & APS2" parameters displayed correctly ?

    YES

    • Fault is intermittent caused by poor contact in Sensor' s and/or PCM' s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

    NO
