Monitor SCANTOOL Data

  1. Connect scantool to DLC (Data Link Connector)
  2. Warm-up the engine to normal operating temperature.
  3. Monitor "Actual Torque & Torque Request" parameters on scantool
  4. Monitor DTC related to "ETS or CAM" on scantool

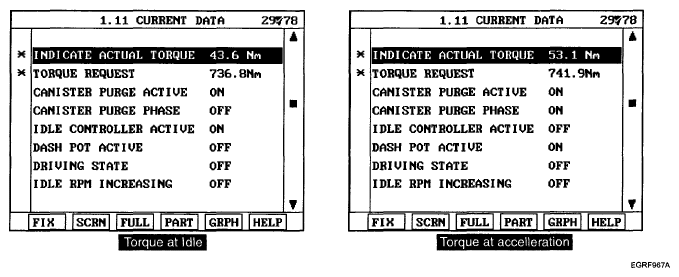

    Fig 1: Diagnosis Function Screen Display - Indicate Actual Torque
    G04891528Courtesy of HYUNDAI MOTOR CO.
  5. Are there any DTC related to "ETS" or "CAM" on the scantool ?

    YES

    NO
