Schematic Diagram

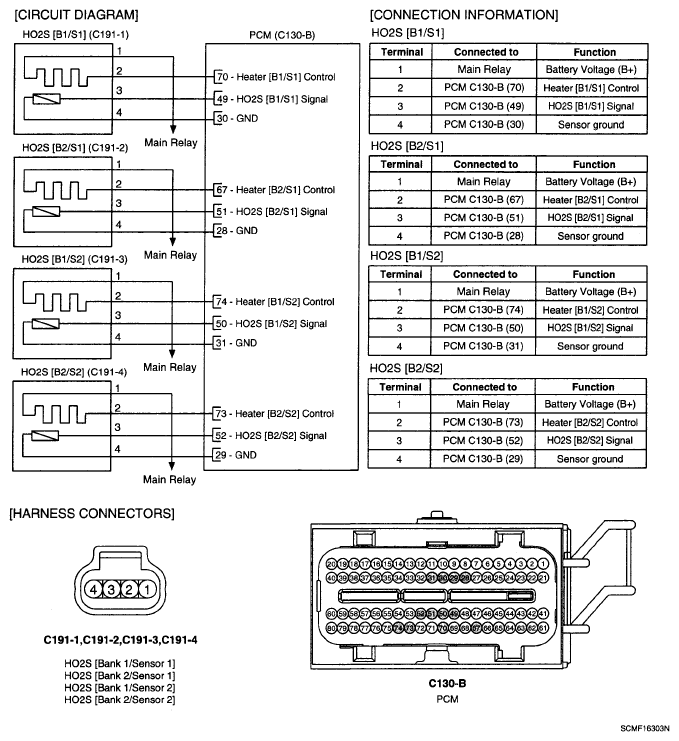

Fig 1: O2 Sensor Signal Stuck Lean (Bank 1 / Sensor 2) - Schematic Diagram

G05349452

Courtesy of HYUNDAI MOTOR CO.
