Control Algorithm Flow Chart

The base control algorithm of the ITM ECM is defined by the following flowchart:

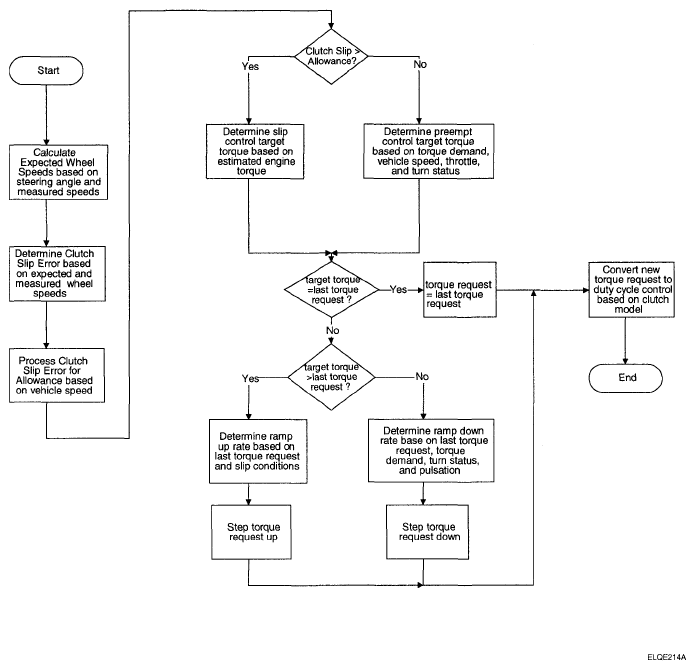

Fig 1: Control Algorithm Flow Chart

G05348244

Courtesy of HYUNDAI MOTOR CO.
