Coupling Assembly: Components

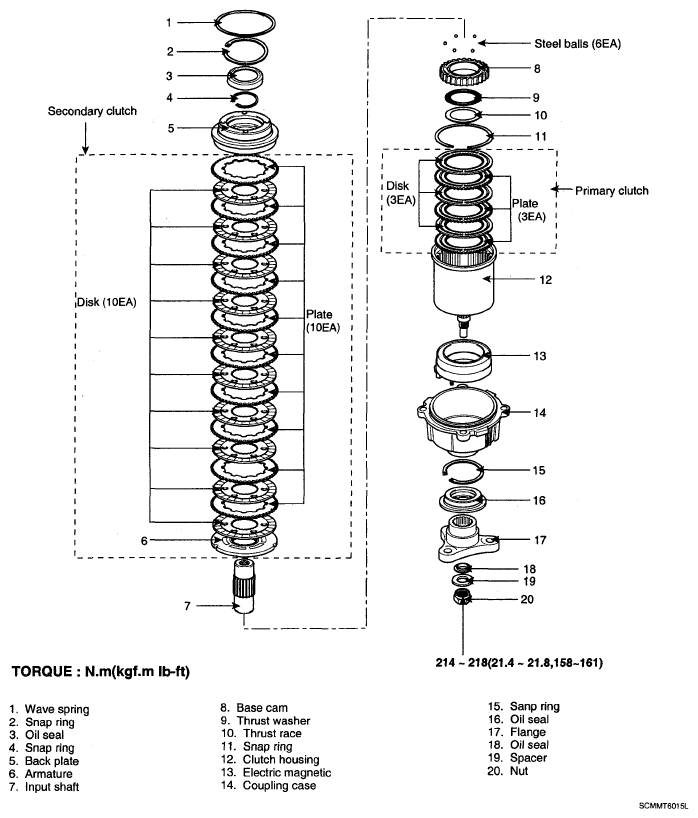

Fig 1: Identifying Coupling Assembly Components

G05348344

Courtesy of HYUNDAI MOTOR CO.
