Manual Transaxle: Components

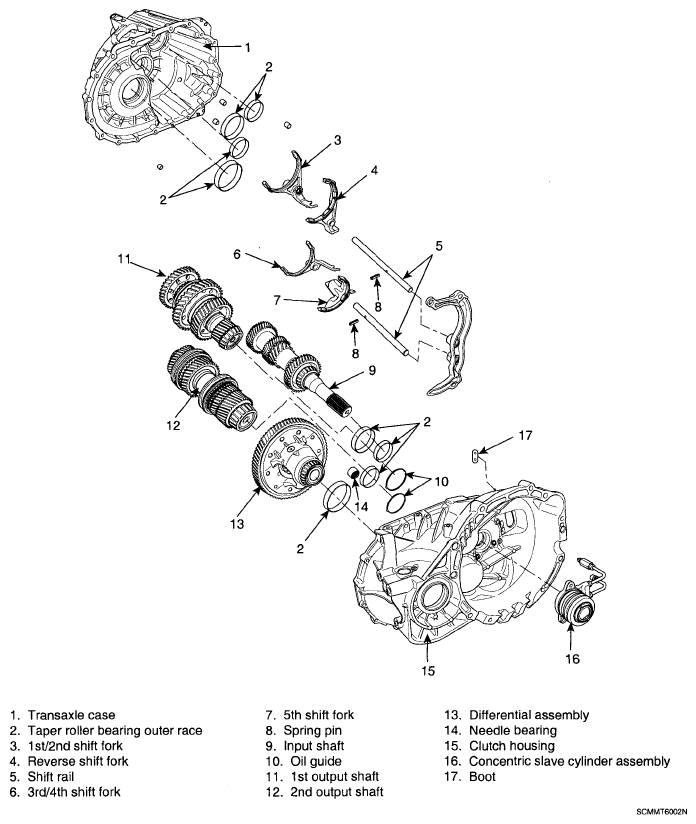

Fig 1: Identifying Manual Transaxle Components

G05348197

Courtesy of HYUNDAI MOTOR CO.
