Control Circuit Inspection

Check short in harness
1. IG "OFF".
2. Disconnect Main Relay and PCM connector.
3. Measure resistance between terminal 86 of Main Relay and chassis ground.
4. Measure resistance between terminals 86 and 85 of Main Relay.
  Specification : Infinite

  Fig 1: Measuring Resistance Between Terminals 86 And 85 Of Main Relay
  Courtesy of HYUNDAI MOTOR CO.
5. Is the measured resistance within specification ?
  YES
  - Go to " Check open in coil control " as follows.
  NO
  - Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check open in harness
1. IG "OFF".
2. Disconnect Main Relay and PCM connector.
3. Measure resistance between harness terminal 86 of Main Relay and harness terminal 43 of PCM harness connector.
  Specification : Approx. below 1Ω

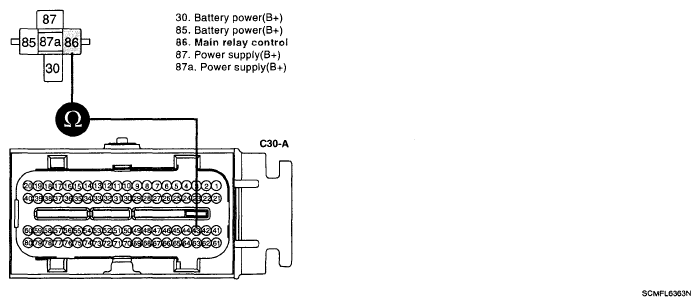

  Fig 2: Measuring Resistance Between Harness Terminal 86 Of Main Relay And 43 Of PCM Harness Connector And Terminal
  Courtesy of HYUNDAI MOTOR CO.
4. Is the measured resistance within specifications ?
  YES
  - Go to "COMPONENT INSPECTION " procedure.
  NO
  - Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
