Control Circuit Inspection

  1. Check short in harness
    1. IG "ON".
    2. Disconnect A/C relay.
    3. Measure the voltage between terminal 85 of A/C relay harness connector and chassis ground.

      Specification : Approx. 0V

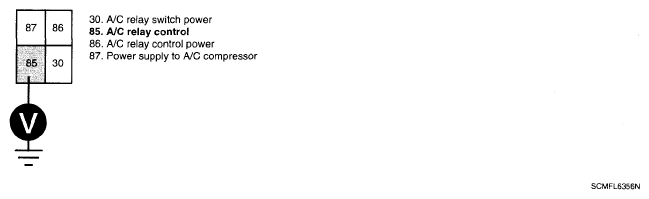

      Fig 1: Measuring Voltage Between Terminal 85 Of A/C Relay Harness Connector And Chassis Ground
      G05349222Courtesy of HYUNDAI MOTOR CO.
    4. Is the measured voltage within specification ?

      YES

      NO
