ESC Circuit Diagram (1): Notes

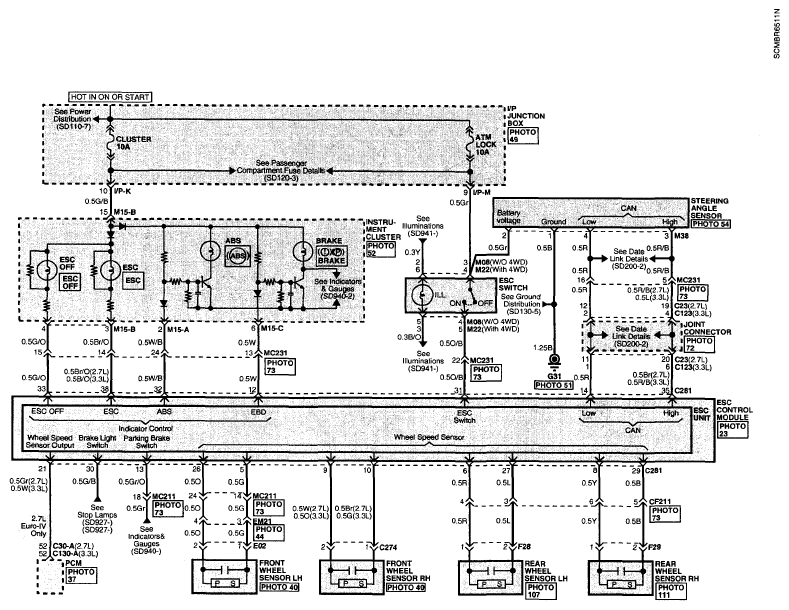

Fig 1: ESC Circuit Diagram (1 Of 2)

G05350718

Courtesy of HYUNDAI MOTOR CO.
