Signal Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect "TRANSAXLE RANGE SWITCH" and TCM (PCM)" connector.
  3. Measure resistance between each terminal of the sensor harness connector and TCM (PCM) harness connector as below.

    Specification :

    SIGNAL SPECIFICATIONS

    Pin No of "TRANSAXLE RANGE SWITCH" C21 No.1 C21 No.3 C21 No.4 C21 No.7
    Pin No of "PCM" harness C01-1 No.6 C01-1 No.3 C01-1 No.5 C01-1 No.4
    Specification 0Ω 0Ω 0Ω 0Ω

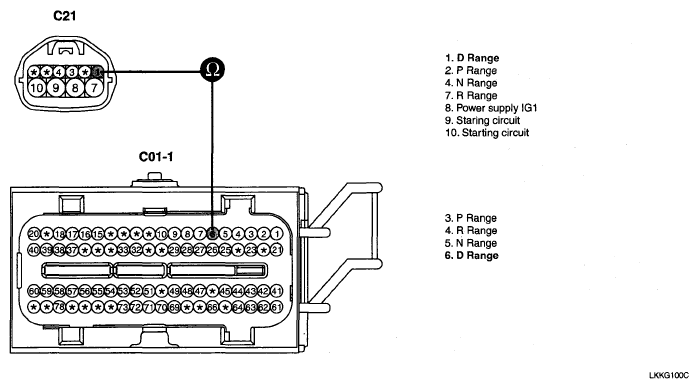

    Fig 1: Measuring Resistance Between Terminal Of Sensor Harness Connector And TCM (PCM) Harness Connector
    G05322284Courtesy of HYUNDAI MOTOR CO.
  4. Is resistance within specifications?

    YES

    NO
