Home >> Hyundai >> 2007 >> Entourage GLS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 2) >> DTC Troubleshooting Procedures >> DTC P0646 A/C Clutch Relay Control Circuit Low >> Schematic Diagram

Schematic Diagram

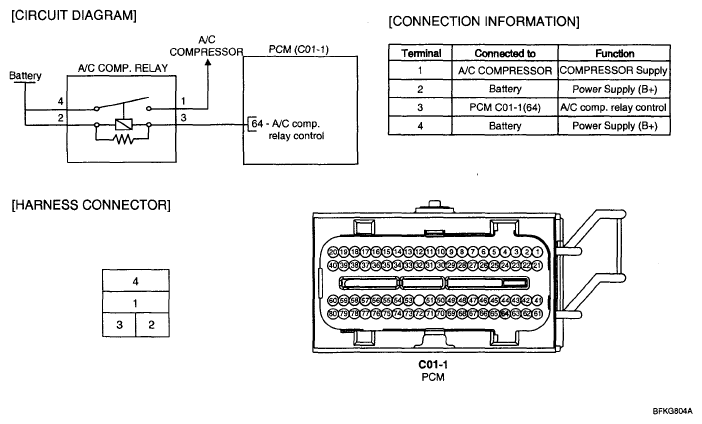

Fig 1: A/C Clutch Relay Control - Schematic Diagram

G05322137

Courtesy of HYUNDAI MOTOR CO.
