Component Location

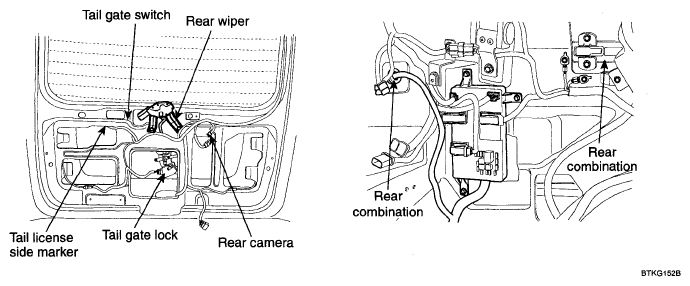

Fig 1: Identifying Left Tail License Side Marker Lamp Component Location

G05325144

Courtesy of HYUNDAI MOTOR CO.
