ESC Circuit Diagram(1): Notes

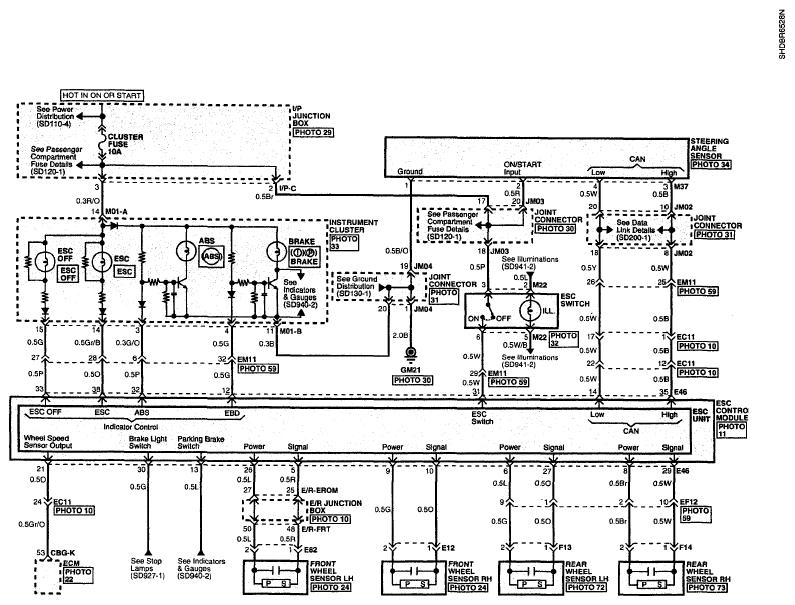

Fig 1: ESC Circuit Diagram (1)

G05365066

Courtesy of HYUNDAI MOTOR CO.
