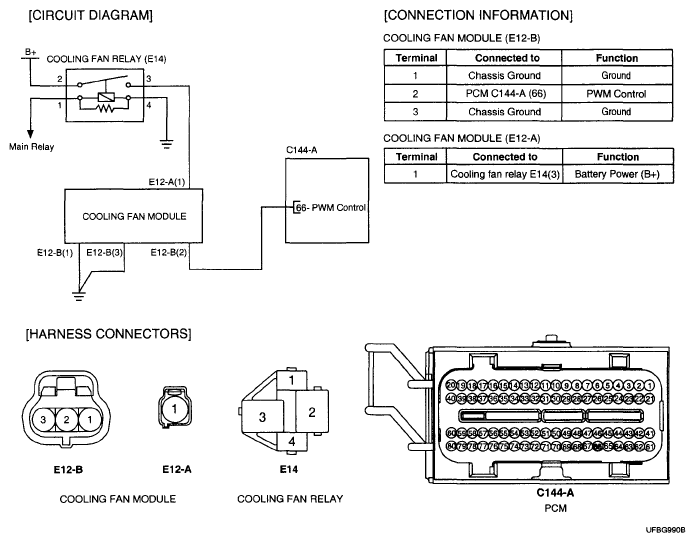

Home >> Hyundai >> 2007 >> Azera GLS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 2) >> DTC Troubleshooting Procedures >> DTC P0480 Fan 1 Control Circuit Malfunction >> Schematic Diagram
