Home >> Hyundai >> 2007 >> Azera GLS >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) >> DTC Troubleshooting Procedures >> DTC P0230 Fuel Pump Primary Circuit >> Schematic Diagram

Schematic Diagram

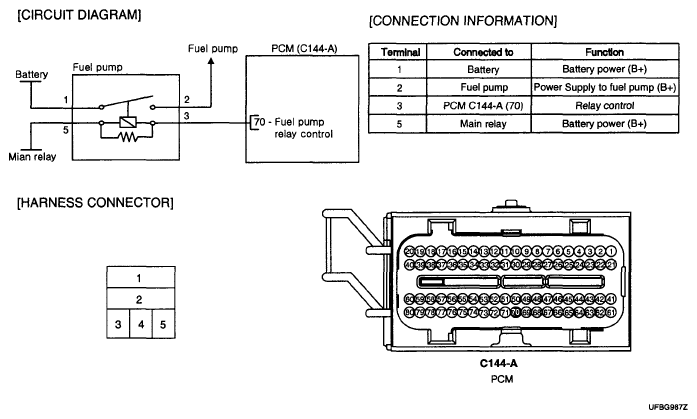

Fig 1: Fuel Pump Primary - Schematic Diagram

G04879817
