Intake Manifold: Notes

COMPONENTS

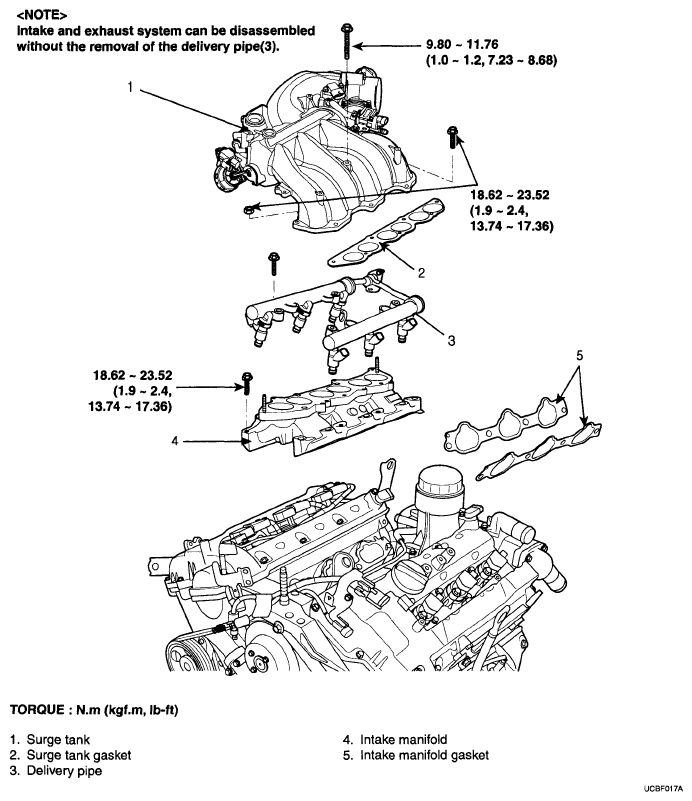

Fig 1: Intake System Replacement Components With Torque Specifications

G04879670

Courtesy of HYUNDAI MOTOR CO.
