Cooling System: Component

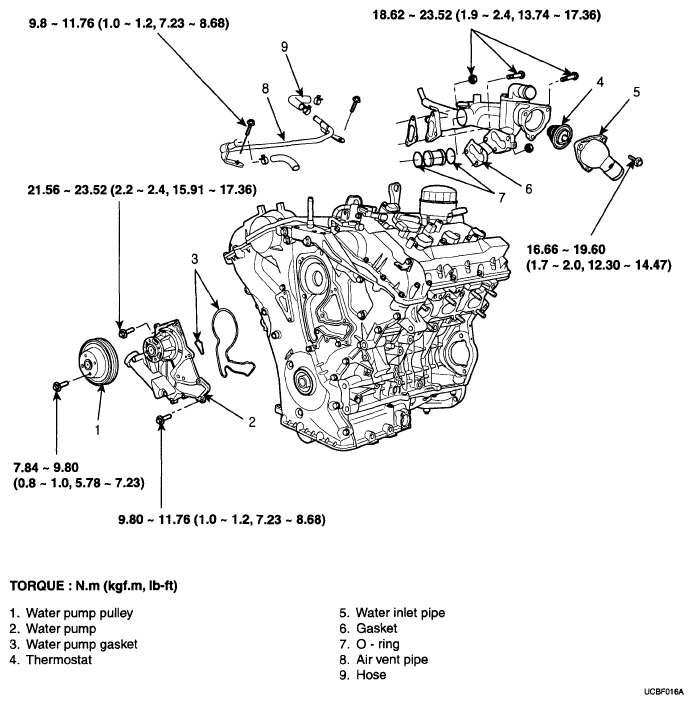

Fig 1: Cooling System Components With Torque Specifications (1 Of 2)
G04879622Courtesy of HYUNDAI MOTOR CO.

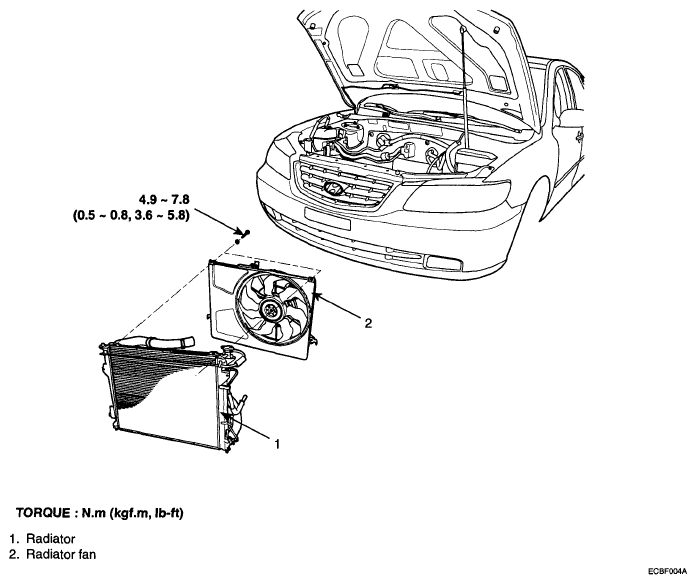

Fig 2: Cooling System Components With Torque Specifications (2 Of 2)
G04879623Courtesy of HYUNDAI MOTOR CO.
