Circuit Diagram Of Starting System

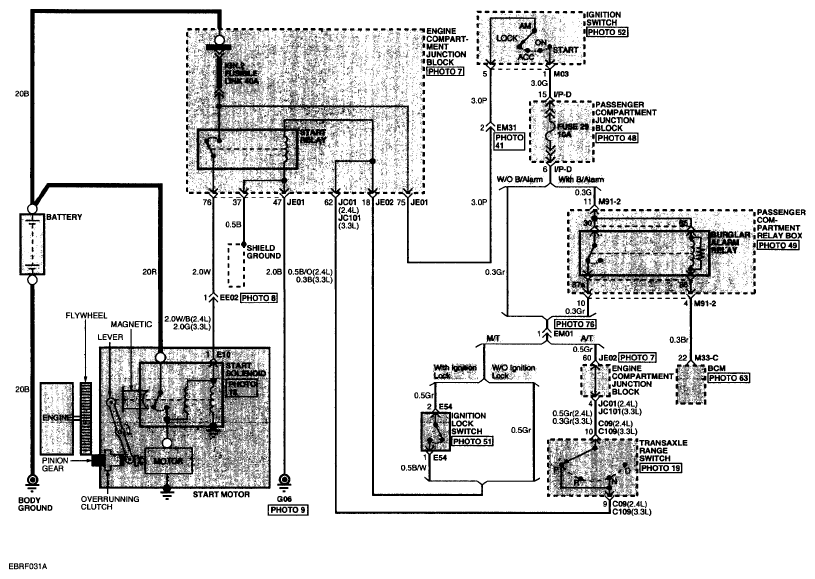

Fig 1: Circuit Diagram Of Starting System
G04879741Courtesy of HYUNDAI MOTOR CO.
