Monitor SCANTOOL Data

  1. Ignition "ON" & Engine "OFF".
  2. Connect Scan tool and clear the DTCs.

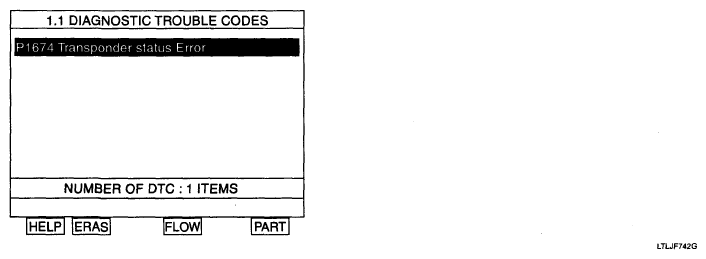

    Fig 1: Scantool Data - Screen Display
    G04881684Courtesy of HYUNDAI MOTOR CO.
  3. Is the DTC "P1674 Transponder status Error" displayed?

    YES

    Check Key status of the current data.

    If Transponder is not virgin, check transponder which is registered other vehicles

    Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    Fault is intermittent caused by poor contact in the SMARTRA's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

    Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
