Components and Components Location: Components

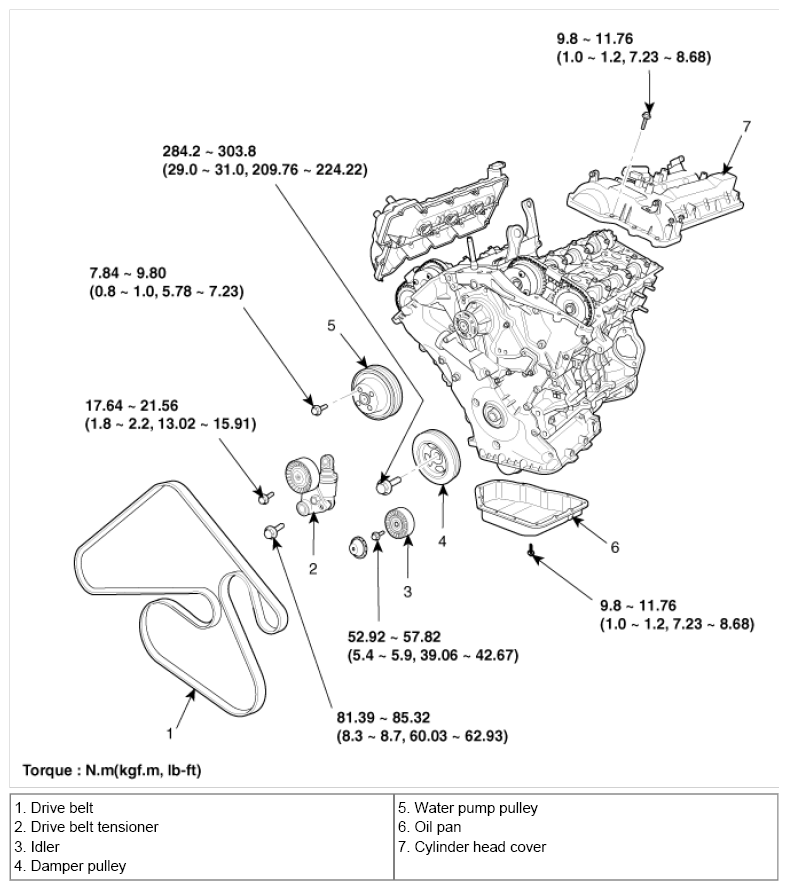

Fig 1: Exploded View Of Timing Chain System With Torque Specifications (1 Of 2)
G07759074

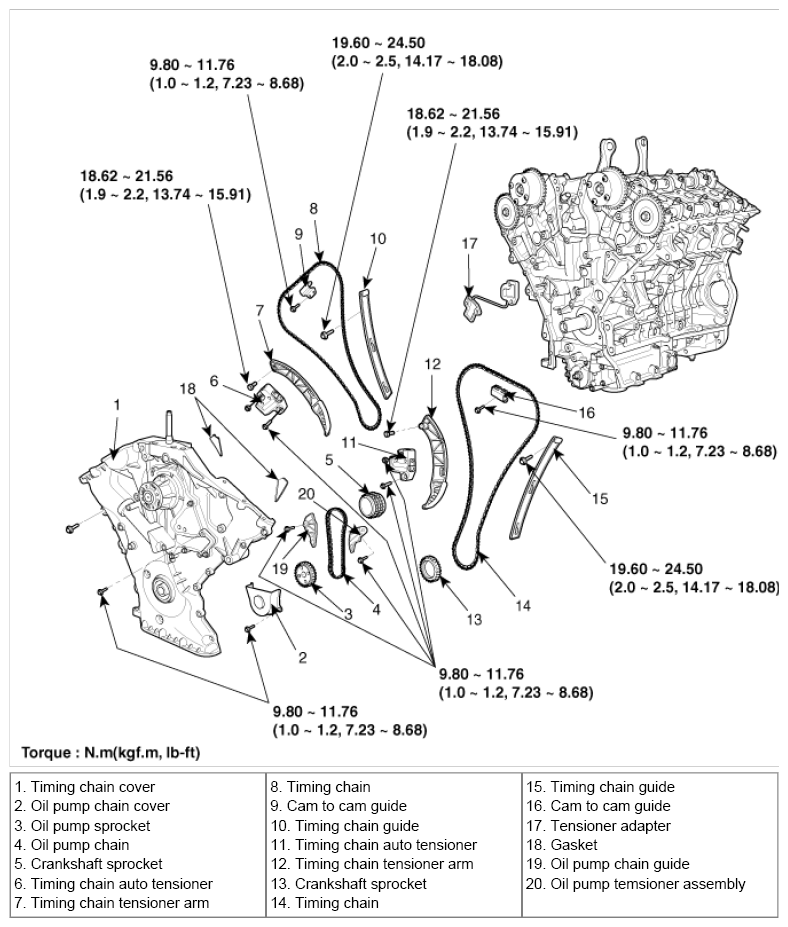

Fig 2: Exploded View Of Timing Chain System With Torque Specifications (2 Of 2)
G07759075
