Automatic Transaxle Hydraulic Circuit: Lock

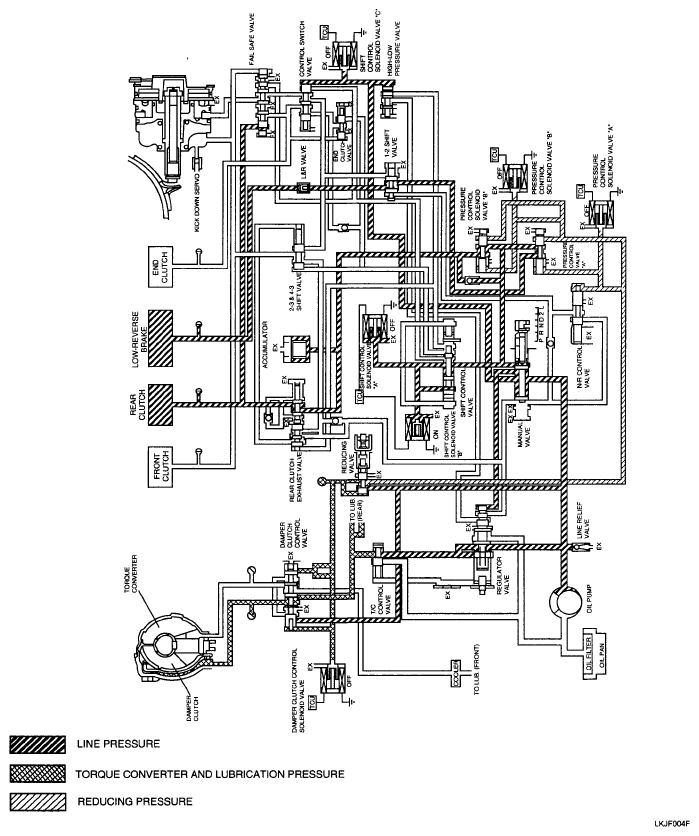

Fig 1: Automatic Transaxle Hydraulic Circuit Diagram - Lock

G04802052

Courtesy of HYUNDAI MOTOR CO.
