Component Inspection

  1. A/C pressure sensor inspection
    1. Key "OFF" and connect the scantool.
    2. Connect the probe to A/C pressure sensor signal and select the oscilloscope in the menu.
    3. Check the change of waveform with A/C "ON" and A/C "OFF" after engine start.
      A/C PRESSURE SENSOR SPECIFICATION

      Pressure (psi)  14.7 100 200 300 470
      Voltage (V)  0.5 1.25 2.13 3.00 4.50

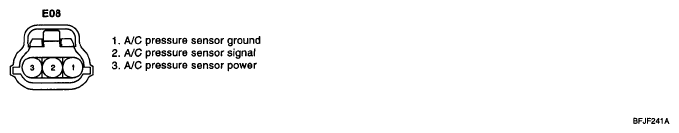

      Fig 1: Identifying A/C Refrigerant Pressure Sensor Connectors
      G04801803Courtesy of HYUNDAI MOTOR CO.
    4. Is the measured waveform of A/C pressure sensor normal?

      YES  : --> Substitute with a known - good ECM/PCM and check for proper operation. If the problem is corrected, replace ECM/PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO  : --> Substitute with a known - good A/C pressure sensor and check for proper operation. If the problem is corrected, replace A/C pressure sensor and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
