DTC P0136 Ho2S Circuit (Bank 1/Sensor 2)
>>
Schematic DIGRAM
Schematic DIGRAM

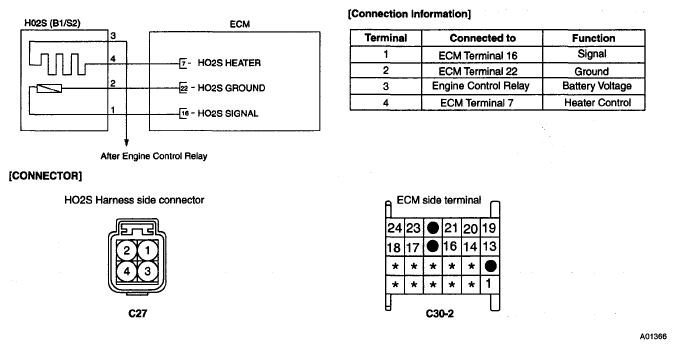

Fig 1: HO2S Heater Control Circuit - Schematic Diagram (Bank 1 / Sensor 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
