Code No. P0711 Oil temperature sensor system

DIAGNOSTIC TROUBLE CODE NO. P0711 - OIL TEMPERATURE SENSOR SYSTEM

Code No. P0711 Oil temperature sensor system	Probable cause
This DTC code is set when the ATF temperature output voltage is lower than a value generated by thermistor resistance, in a normal operating range, for approximately 1 second or longer. The TCM regards the ATF temperature as fixed at a value of 80°C.	Sensor signal circuit is short to ground Faulty sensor Faulty PC M

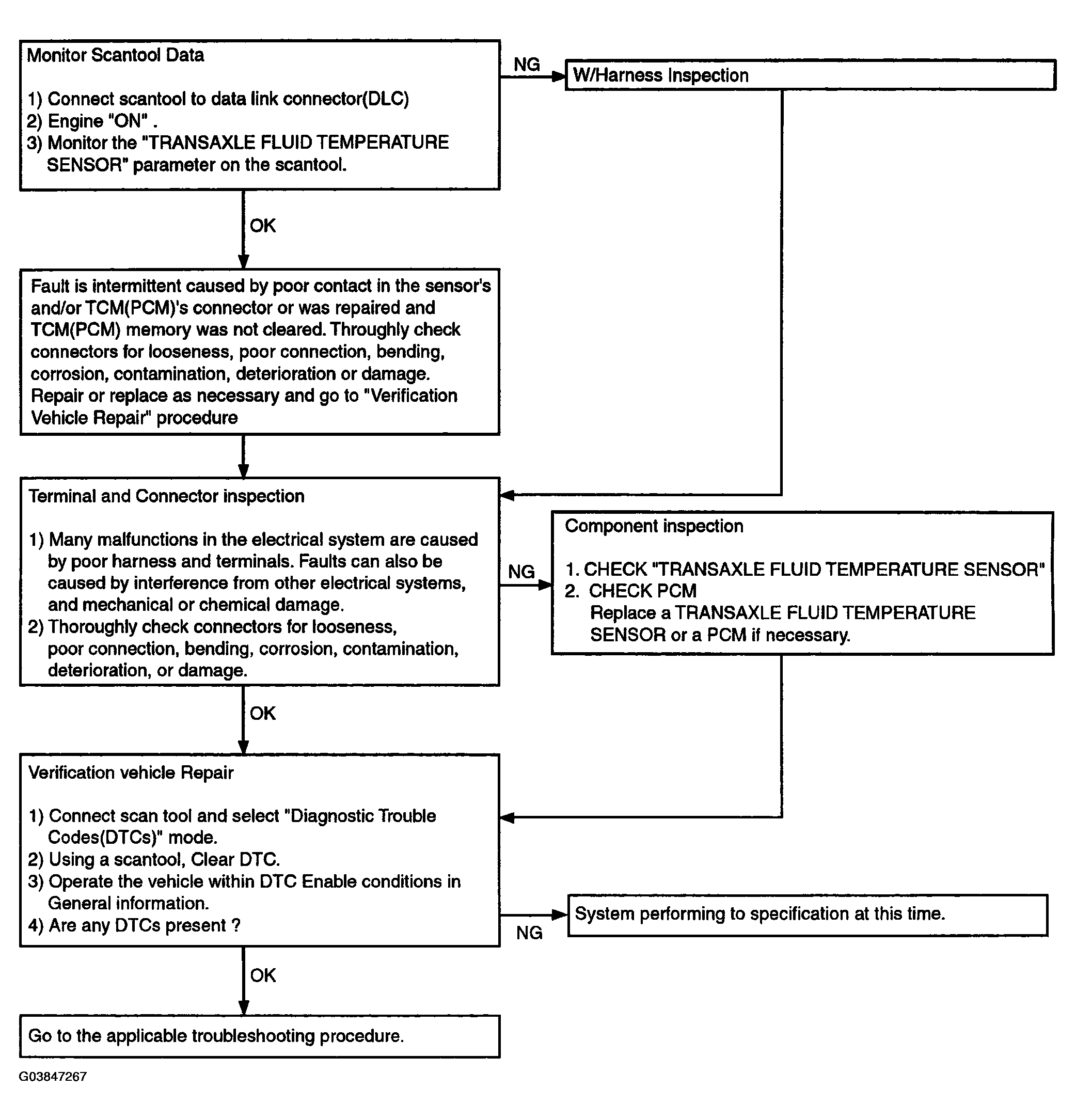

Fig 1: Diagnostic Trouble Code Flow Chart - P0711

Courtesy of HYUNDAI MOTOR CO.
