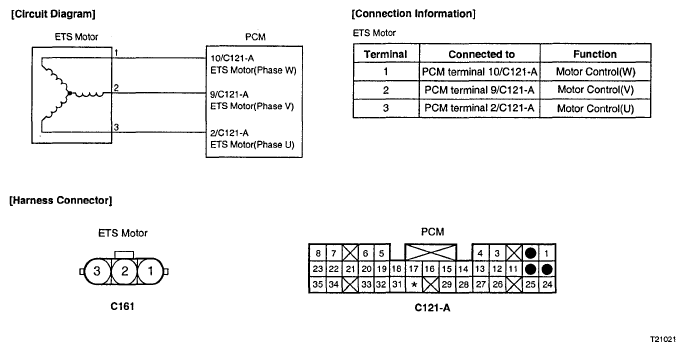

Home >> Hyundai >> 2006 >> Santa Fe Limited, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (3.5L) (2 Of 2) >> DTC Troubleshooting >> DTC P2110/P2111/P2111 Throttle Actuator Control Module Performance/Throttle Actuator Control System-Stuck Open >> Schematic Diagram
