Monitor Scan Tool Data

  1. Connect scan tool to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Monitor the "TPS1", "TPS1", "APS1" and "APS2" parameter on the scan tool.

    Specification: Approx. 0.5~1.0V at idle & No load (TPS2 or TPS EMS)

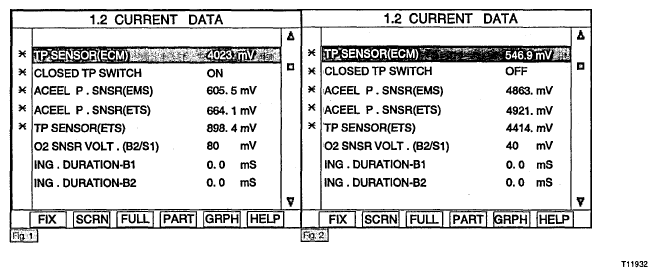

    Fig 1: Scan Tool Display - CURRENT DATA
    G04931936Courtesy of HYUNDAI MOTOR CO.
  4. Is Current data displayed correctly?

    YES:

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO:
