Monitor Scan Tool Data

Monitor Intake Air Temperature Sensor parameter on Current Data.

Specification: (Error range is 2-3%)

TEMPERATURE SPECIFICATION

Temperature (°C/°F)	0 (32°F)	20 (68°F)	40 (104°F)	80 (176°F)
Resistance (Ω)	5.3 ~6.7	2.3~3.0	1.0~1.5	0.3-0.42

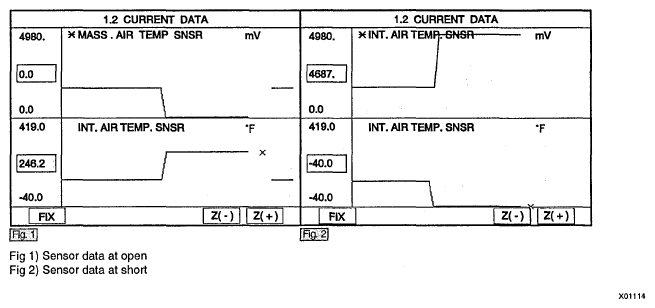

Fig 1: Scan Tool Display - INTAKE AIR TEMPERATURE SENSOR Parameter

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Monitor Intake Air Temperature Sensor Parameter On Current Data

Courtesy of HYUNDAI MOTOR CO.

Is the measured IATS parameter displayed within specifications?
YES:
- Fault is intermittent caused by poor contact in the sensor' s and/or PCM' s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO:
- Go to TERMINAL INSPECTION procedure.
