Monitor Scan Tool Data

  1. Connect scan tool to Data Link Connector (DLC).
  2. Engine "ON" & Warm up the engine to normal operating temperature.
  3. Monitor the "MAFS VOLTAGE" parameter on scan tool.

    Specification: Voltage increases in response to racing

    MONITOR SCAN TOOL DATA

      Normal Parameter
    Approx. 700RPM (Idle) Approx. 2000RPM Approx. 3000RPM
    Signal Voltage 0.6 ~ 1.0V 1.3 ~ 1.5V 1.7 ~ 1.9V
    Mass Air Flow 11.66kg/h 28.41 ~ 35.58kg/h 43.84 ~ 53.38kg/h

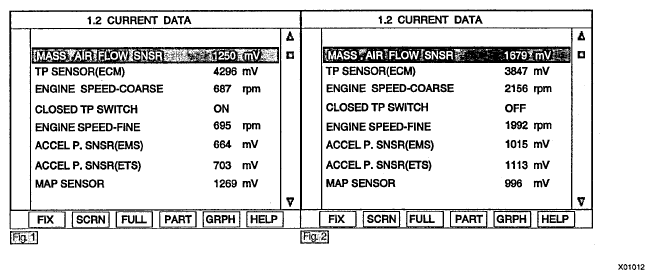

    Fig 1: Monitoring "MAFS VOLTAGE" Parameter On Scan Tool (1 Of 2)
    G04931665Courtesy of HYUNDAI MOTOR CO.

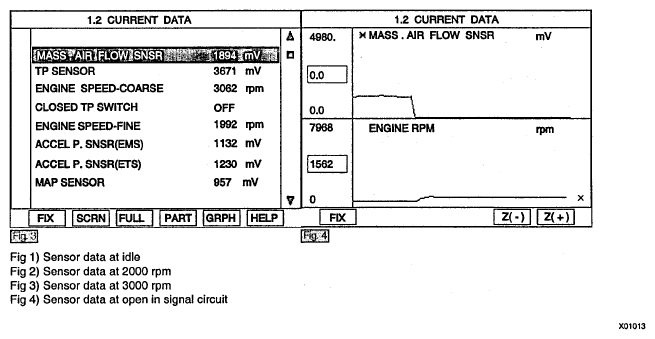

    Fig 2: Monitoring "MAFS VOLTAGE" Parameter On Scan Tool (2 Of 2)
    G04931666Courtesy of HYUNDAI MOTOR CO.
  4. Is the measured sensor's signal within specifications?

    YES:

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO:
