Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
USING HI-SCAN (PRO)
HI-SCAN FUNCTIONS REFERENCE
| Check item |
Data display |
Check conditions |
Steering wheel |
Normal indication |

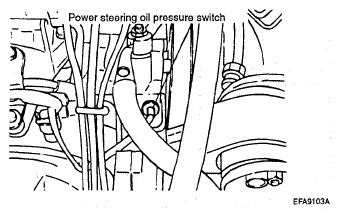

| Power steering oil pressure switch |
Switch state |
Engine: Idling |
Steering wheel neutral position (wheels straight ahead direction) |
OFF |
| Steering wheel half turn |
ON |
