Troubleshooting Procedure (ATS)

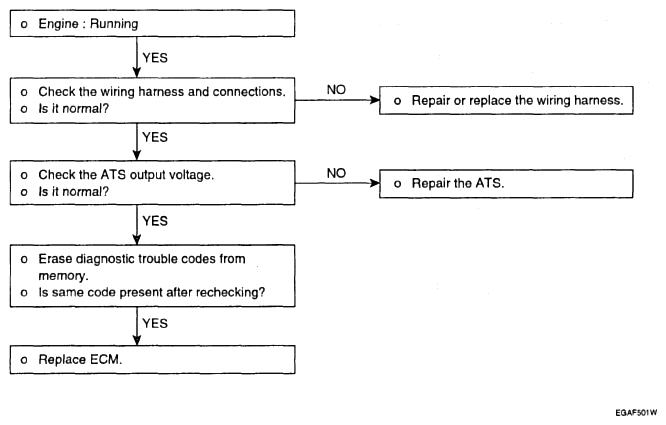

Fig 1: Troubleshooting Procedure Flow Chart (ATS)
G04932109Courtesy of HYUNDAI MOTOR CO.
