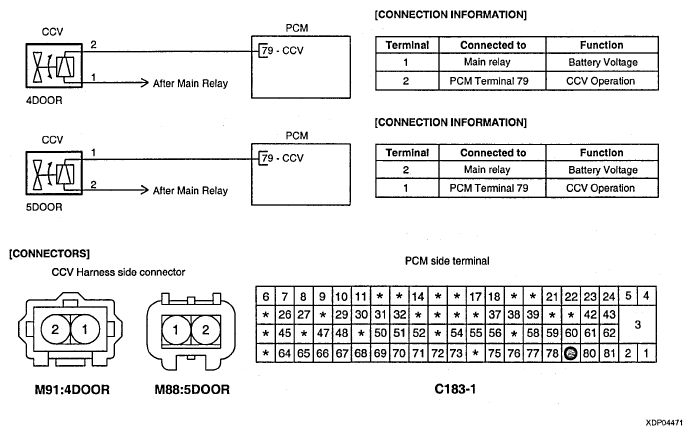

Home >> Hyundai >> 2006 >> Elantra Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G4GC-GSL 2.0) >> DTC Troubleshooting Procedures >> DTC P0447 EVAP. Emission System-Vent Control Circuit Open >> Schematic Diagram
