Manual Transaxle: Components

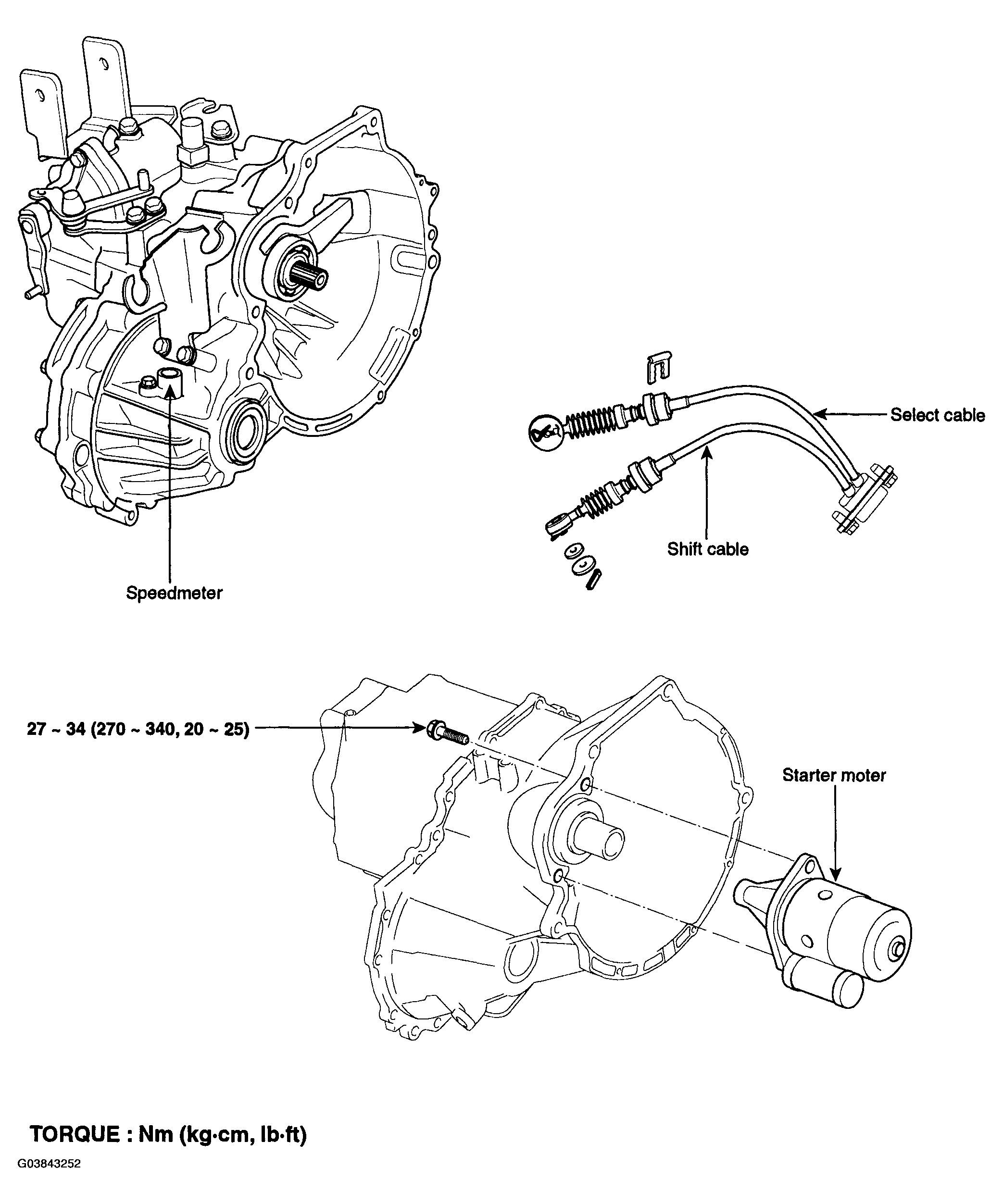

Fig 1: Starter Motor And Select Cable With Torque Specifications

G03843252

Courtesy of HYUNDAI MOTOR CO.
