Control Circuit Inspection

Check for short to ground in control circuit.
1. Ignition "OFF".
2. Disconnect PCM connector.
3. Measure resistance between terminals 2 of the PCSV harness connector and 26 of the PCM harness connector.
  Specification: Approx. 0Ω

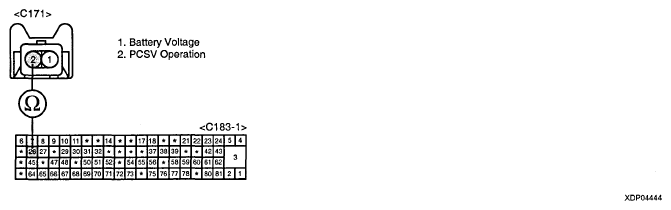

  Fig 1: Measuring Resistance Between Terminals 2 Of PCSV Connector And 26 Of PCM Connector
  Courtesy of HYUNDAI MOTOR CO.
4. Is resistance within the specification?
  Yes:
  - Go to next step as below.
  No:
  - Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check for short to battery in control circuit.
1. Ignition "ON" & Engine "OFF".
2. Measure voltage between terminal 2 of the PCSV harness connector and chassis ground.
Specification: Approx. 0V

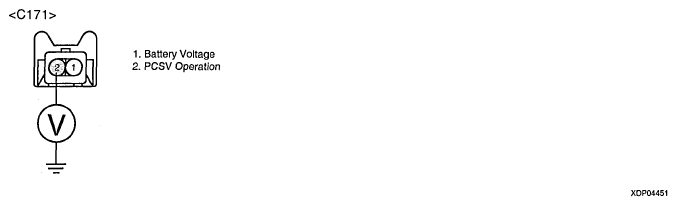

Fig 2: Measuring Voltage Between Terminal 2 Of PCSV Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is voltage within the specification?
Yes:
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
No:
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
