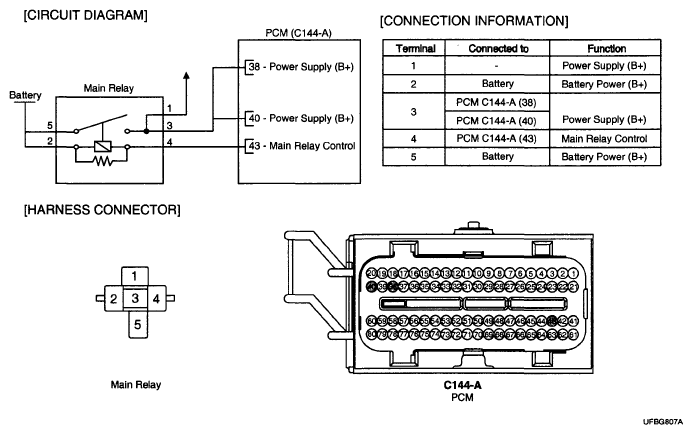

Home >> Hyundai >> 2006 >> Azera SE >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 2) >> DTC Troubleshooting Procedures >> Trouble Shooting For DTC >> DTC P0685 ECM/Pcm Power Relay Control Circuit/Open >> Schematic Diagram
